160A High Output
Powerful current output for demanding applications
DEYE
BOS-A
7.68 kWh LiFePO4 commercial battery module with 160A output and 3U rack design.
- Module Energy: 7.68 kWh
- Max Output: 160 A
Features
Overview

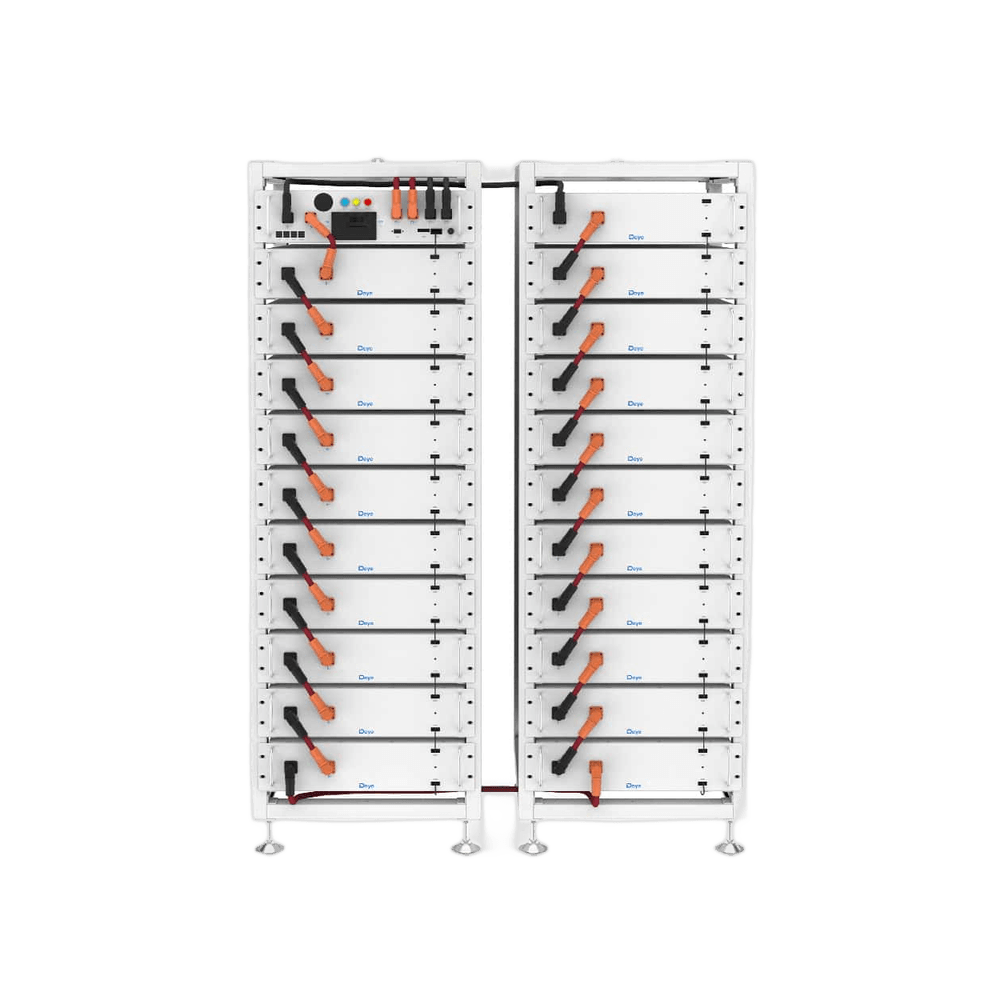

The Deye BOS-A is an advanced commercial battery storage module designed for scalable C&I energy systems. With 7.68 kWh per module, 200Ah capacity, and support for 160A current output, it delivers high performance for demanding applications. The 3U rack design connects to two inverter DC interfaces for flexible system configurations from 54-161 kWh.
Frequently Asked Questions
You can connect 7-21 BOS-A modules in series, providing system energy from 54 kWh to 161 kWh. The system is compatible with 50-100kW DEYE inverters.
The BOS-A system can switch between on-grid and off-grid operation in less than 10 milliseconds, ensuring seamless power continuity during grid outages.
The 3U rack design allows the BOS-A to connect to two inverter DC interfaces simultaneously, providing flexibility in system design and improved power distribution.
The BOS-A is available globally including NA (North America), AS (Asia), AF (Africa), EU (Europe), and LATAM (Latin America) with appropriate certifications for each region.
