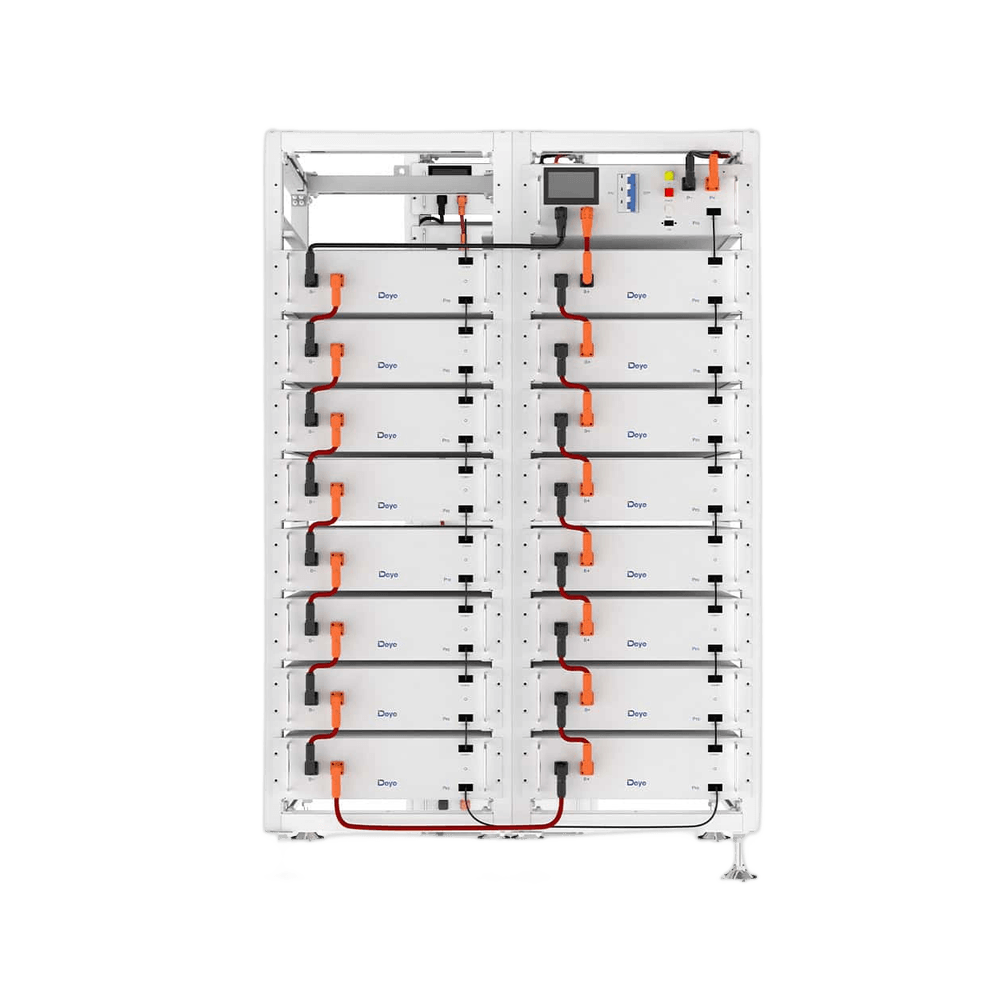

Deye 25.6–87.04 kWh 256–870.4 V Lithium Solar Battery BOS-G-PRO – High-Voltage Rack Battery System

When a project outgrows a small rack, the module should not have to change. The Deye BOS-G Pro keeps the familiar 5.12 kWh, 51.2 V, 100 Ah building block, at 46 kg per module, and stretches the series string: five to seventeen modules assemble into systems of 25.6 to 87.04 kWh, spanning 256 to 870.4 V nominal with an operating window that reaches 992.8 V. Its recommended depth of discharge is 100%, meaning the capacity on the nameplate is the capacity you draw. The current path is rated at 120 A for both charge and discharge, peaking at 125 A, and sixteen racks may be paralleled for larger sites. Cells are LiFePO4 with a cycle life beyond 6,000 cycles to 70% end-of-life, CAN2.0 and RS485 handle communications, and the unit is certified to UN38.3, CE, CE-EMC, IEC62040, CEC and VDE. The rack installs indoors, is rated IP20 and is warranted for 10 years. We are an authorised Deye distributor and supply the BOS-G-PRO from our own stock, with technical support before and after the sale.
