This model in each market

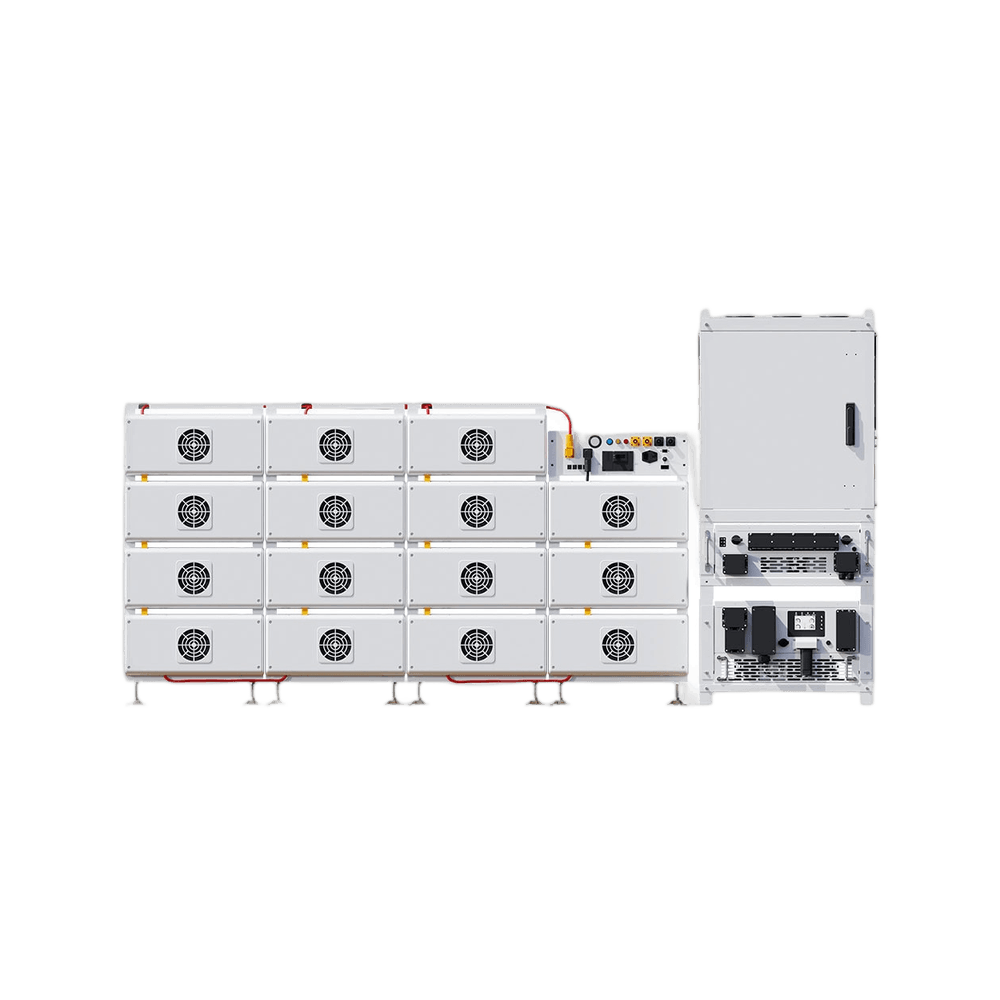

DEYE BOS-B Commercial Battery System

Deye 215 kWh 768 V Lithium Solar Battery BOS-B – High-Voltage Rack Battery System

A commercial 768 V battery cabinet of 14.3 kWh LiFePO4 modules, reaching 215 kWh per cabinet and 4,300 kWh across 20 parallel units.

Authorised Deye distributor for the Middle East — certificate No. GFKFLFI1.

  • System Energy: 215 kWh
  • Usable Energy: 193.05 kWh
  • System Nominal Voltage: 768 V
  • Cycle Life: >6000
AED 8,566incl. VAT

In stock

Or collect it yourself — no carriage

Online datasheetDownload datasheet (PDF)

Deye 215 kWh 768 V Lithium Solar Battery BOS-B – High-Voltage Rack Battery System features

215 kWh in one cabinet

Fifteen 14.3 kWh, 280 Ah modules fill the 768 V enclosure, 193.05 kWh of it usable at 90% depth of discharge.

Fire suppression on board

Aerosol fire suppression and a circuit breaker come built into the cabinet.

Smart fan cooling

BMS-managed fans move air through the cabinet across its -20 to 55 degrees C discharge range.

98.5% round-trip efficiency

Up to 98.5% of stored energy comes back out, with 1.1x overload tolerance in reserve.

Scales to 4,300 kWh

Twenty cabinets operate in parallel, with up to 16 racks on a single PCS.

Ready for remote supervision

TCP, RS485 and CAN ports plus an LCD reporting state of charge and fault codes.

About the Deye 215 kWh 768 V Lithium Solar Battery BOS-B – High-Voltage Rack Battery System

Shave peak tariffs or ride through outages at commercial scale with a cabinet that treats safety as standard equipment. The Deye BOS-B loads 14.3 kWh, 280 Ah modules (BOS-B-Pack14.3) into a 768 V enclosure: a full stack of fifteen reaches 215 kWh, with 193.05 kWh usable at the recommended 90% depth of discharge, and configurations run from BOS-B70 through BOS-B215. Twenty cabinets can operate in parallel for as much as 4,300 kWh, with up to 16 racks on a single PCS and 1.1x overload tolerance. Aerosol fire suppression is built into the cabinet, smart fan cooling manages temperature, and an LCD reports state of charge and fault codes at a glance. Round-trip efficiency reaches 98.5%, LiFePO4 cells run past 6,000 cycles to 70% end-of-life, and TCP, RS485 and CAN ports connect the system to supervision. Certification includes CE, IEC62619, IEC62040 and UN38.3, under a 10-year warranty. We are an authorised Deye distributor and supply the BOS-B from our own stock, with technical support before and after the sale.

Specifications last updated 24 January 2026

Deye 215 kWh 768 V Lithium Solar Battery BOS-B – High-Voltage Rack Battery System is best for

  • Commercial and industrial peak shaving or backup at hundreds of kWh
  • Projects growing toward multi-cabinet capacity up to 4,300 kWh
  • Indoor energy rooms that need built-in fire suppression
  • High-voltage PCS and hybrid architectures around 768 V

Deye 215 kWh 768 V Lithium Solar Battery BOS-B – High-Voltage Rack Battery System is not for

  • Residential 48 V storage
  • Open-air placement, given the IP20 enclosure
  • Sites that cannot take a 2,150 mm tall, 680 kg-plus cabinet
  • Altitudes beyond 3,000 m

Deye 215 kWh 768 V Lithium Solar Battery BOS-B – High-Voltage Rack Battery System full specifications

Electrical

Energy14.3 kWh
Usable Energy193.05 kWh
Module Energy14.3 kWh
System Energy215 kWh
Max. Capacity4300 kWh
Nominal Voltage51.2 V
Module Nominal Voltage51.2 V
System Nominal Voltage768 V
Operating Voltage208-876 V
Rated Capacity280 Ah
Module Capacity280 Ah
Cell ChemistryLiFePO4
Cycle Life>6000
End-of-Life Capacity70 %
Recommended Depth of Discharge90 %
Rated DC Power43.008-129.024 kW
Max. Charge Current168 A
Max. Discharge Current168 A
Max. Charge/Discharge Current168 A
Nominal Charge/Discharge Current168 A
Max. Round-Trip Efficiency98.5 %
Modules in Series15
Min. Battery Module Quantity5
Battery Module ModelsBOS-B70, BOS-B85, BOS-B100, BOS-B110, BOS-B125, BOS-B140, BOS-B155, BOS-B170, BOS-B185, BOS-B200, BOS-B215
Parallel Units20
Built-in Circuit BreakerCircuit Breaker
Warranty (Years)10

Mechanical

Communication PortsTCP, RS485, CAN
Communication ProtocolCAN
Dimensions2150 x 1136 x 800 mm
Additional NotesBackup Time (16 racks): Up to 32; Max 16 racks per single PCS; 1.1x overload; module BOS-B-Pack14.3, PDU BOS-B-PDU-2
Module Dimensions795.9 x 274.2 x 526 mm
Module Weight123 kg
Status IndicatorLCD: SOC / Fault Code; Yellow: Battery High Voltage Power On; Red: Battery System Alarm
Weight680-1944 kg

Environmental

Altitude<3000 m
Charge Temperature0-55 °C
Discharge Temperature-20 to 55 °C
Fire SuppressionAerosol
Operating Humidity5-85 %
Installation LocationRack-Mounted
Enclosure IP RatingIP20
Storage Temperature0-35 °C
Cooling TypeSmart Fan Cooling
Working TemperatureCharge: 0-55 / Discharge: -20 to 55 °C

Certifications

  • CE
  • IEC62619
  • IEC62040
  • UN38.3
4.0★★★★★Based on 1 review
  • ★★★★★Really complicated system but worth it

    Little complicated to get your head around, thankfully the catalogue and the team support at AGS international is great, otherwise i would have been lost, crazy good., thanks for the team
