This model in each market

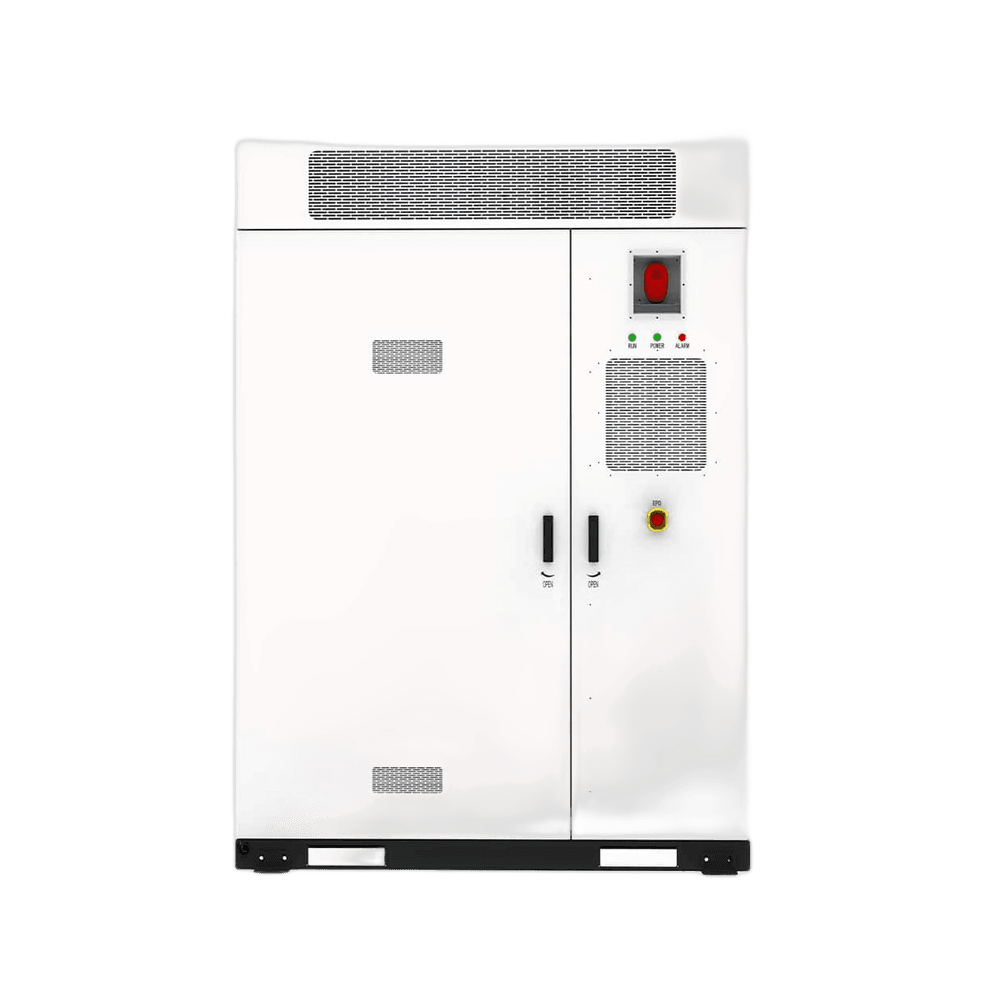

DEYE MS-G215 Micro Grid System

Deye 215 kWh 768 V Lithium Solar Battery MS-G215 – Commercial & Industrial Energy Storage Cabinet

The Deye MS-G215 is a 215 kWh commercial battery storage cabinet delivering 100 kW of rated DC power from 280 Ah LiFePO4 modules. One floor-mounted IP54 unit holds all 215 kWh and weighs 2,700 kg.

Authorised Deye distributor for the Middle East — certificate No. GFKFLFI1.

  • System Energy: 215 kWh
  • Operating Voltage: 660-876 V
  • Cycle Life: >6000
AED 212,127incl. VAT

In stock

Or collect it yourself — no carriage

Online datasheetDownload datasheet (PDF)

Deye 215 kWh 768 V Lithium Solar Battery MS-G215 – Commercial & Industrial Energy Storage Cabinet features

215 kWh of LiFePO4 storage in one cabinet, assembled from 280 Ah modules of 14.3 kWh each at 51.2 V nominal.

100 kW of rated DC power at 98.5% maximum efficiency and 88% maximum round-trip efficiency.

Three-phase 3L/PE output at 380/400 V and 50/60 Hz, 152 A rated and 167 A maximum, with THD under 3%.

Aerosol fire suppression, one-hour flame-retardant construction, BMS protection, cell balancing and Type II overvoltage protection on the DC and AC sides.

IP54 enclosure with C4 anti-corrosion grade, floor-mounted below 3,000 m, charging at 0-55 C and discharging at -20 to 50 C.

More than 6,000 cycles to 70% end-of-life capacity, a 10-year warranty, and up to 12 cabinets in parallel.

About the Deye 215 kWh 768 V Lithium Solar Battery MS-G215 – Commercial & Industrial Energy Storage Cabinet

The Deye MS-G215 is a 215 kWh battery energy storage cabinet rated at 100 kW of DC power, built from LiFePO4 modules of 280 Ah and 14.3 kWh each at 51.2 V nominal. One floor-mounted cabinet holds the full 215 kWh, weighs 2,700 kg and measures 1765 x 2500 x 1000 mm. On the grid side it connects as three-phase 3L/PE at 380/400 V and 50/60 Hz, drawing 152 A rated and 167 A maximum, with total harmonic distortion under 3% and power factor adjustable from -1 to 1. Peak efficiency is 98.5% and maximum round-trip efficiency 88%; off-grid it holds 1.1x rated power, over a 660-876 V DC operating window. Protection is layered: aerosol fire suppression, one-hour flame-retardant construction, BMS protection, cell balancing and Type II overvoltage protection on both the DC and AC sides, inside an IP54, C4 anti-corrosion enclosure. It is certified to UN3536, IEC61000, IEC62477 and IEC60730, monitored over ETH/4G with an LCD indicator, and rated beyond 6,000 cycles to 70% end-of-life capacity with a 10-year warranty. Up to 12 cabinets run in parallel. We supply it as an authorised Deye distributor.

Specifications last updated 24 January 2026

Deye 215 kWh 768 V Lithium Solar Battery MS-G215 – Commercial & Industrial Energy Storage Cabinet is best for

  • Commercial and industrial peak shaving
  • Three-phase 380/400 V grid connections
  • Sites planning up to 12 paralleled cabinets
  • Outdoor pads needing C4-grade corrosion resistance

Deye 215 kWh 768 V Lithium Solar Battery MS-G215 – Commercial & Industrial Energy Storage Cabinet is not for

  • Single-home residential storage
  • Direct solar input without the optional MPPT expansion
  • Installations above 3,000 m altitude
  • Rooftops or floors not engineered for 2,700 kg

Deye 215 kWh 768 V Lithium Solar Battery MS-G215 – Commercial & Industrial Energy Storage Cabinet full specifications

Electrical

Energy215 kWh
Module Energy14.3 kWh
System Energy215 kWh
Nominal Voltage768 V
Module Nominal Voltage51.2 V
Operating Voltage660-876 V
Rated Voltage Range380/400 V
Rated Capacity280 Ah
Module Capacity280 Ah
Cell ChemistryLiFePO4
Cycle Life>6000
End-of-Life Capacity70 %
Rated DC Power100 kW
Max. Round-Trip Efficiency88 %
Max. Efficiency98.5 %
Min. Battery Module Quantity1
Parallel Units12
Overvoltage ProtectionDC Type II, AC Type II
Protection FeaturesBMS Protection, Cell Balancing, Flame Retardant (1 hour)
Protection LevelI
Grid Connection Form3L/PE
Peak Power (Off-Grid)1.1x of rated power
Power Factor-1 to 1
Total Harmonic Distortion (THD)<3 %
Frequency Range50/60 Hz
AC Rated Current152 A
Max. AC Output Current167 A
Warranty (Years)10

Mechanical

Communication PortsETH/4G
Dimensions1765 x 2500 x 1000 mm
Additional NotesDC Injection Current: <0.5ln; AC Output Frequency and Voltag; Supports optional MPPT module expansion
Module Dimensions526 x 230 x 784.5 mm
Module Weight105 kg
Status IndicatorLCD
Weight2700 kg

Environmental

Altitude<3000 m
Anti-Corrosion GradeC4
Charge Temperature0-55 °C
Discharge Temperature-20 to 50 °C
Fire SuppressionAerosol
Operating Humidity15-85 (non-condensing) %
Installation LocationFloor-Mounted
Enclosure IP RatingIP54
Working TemperatureCharge: 0-55 / Discharge: -20 to 50 °C

Certifications

  • UN3536
  • IEC61000
  • IEC62477
  • IEC60730
