How many modules can I connect?

The RW-F10.2-B supports up to 32 packs in parallel, providing a maximum capacity of 327kWh for large residential or small commercial applications.

What is auto-networking?

Auto-networking means the battery modules automatically connect and configure themselves without needing manual DIP switch coding, making installation and expansion much simpler.

DEYE RW-F10.2-B Battery | 10.24kWh North America UAE

Name: RW-F10.2-B
Brand: DEYE MJS
SKU: rw-f10-2-b
Price: 6877 AED
Availability: InStock

Features

10.24kWh Capacity

Scalable to 327kWh

Auto-Networking

No DIP switch needed

1.25C Discharge

High power capability

IP65 Protection

Indoor/outdoor rated

Remote Monitoring

Deye app support

Flexible Install

Wall or floor mounting

Overview

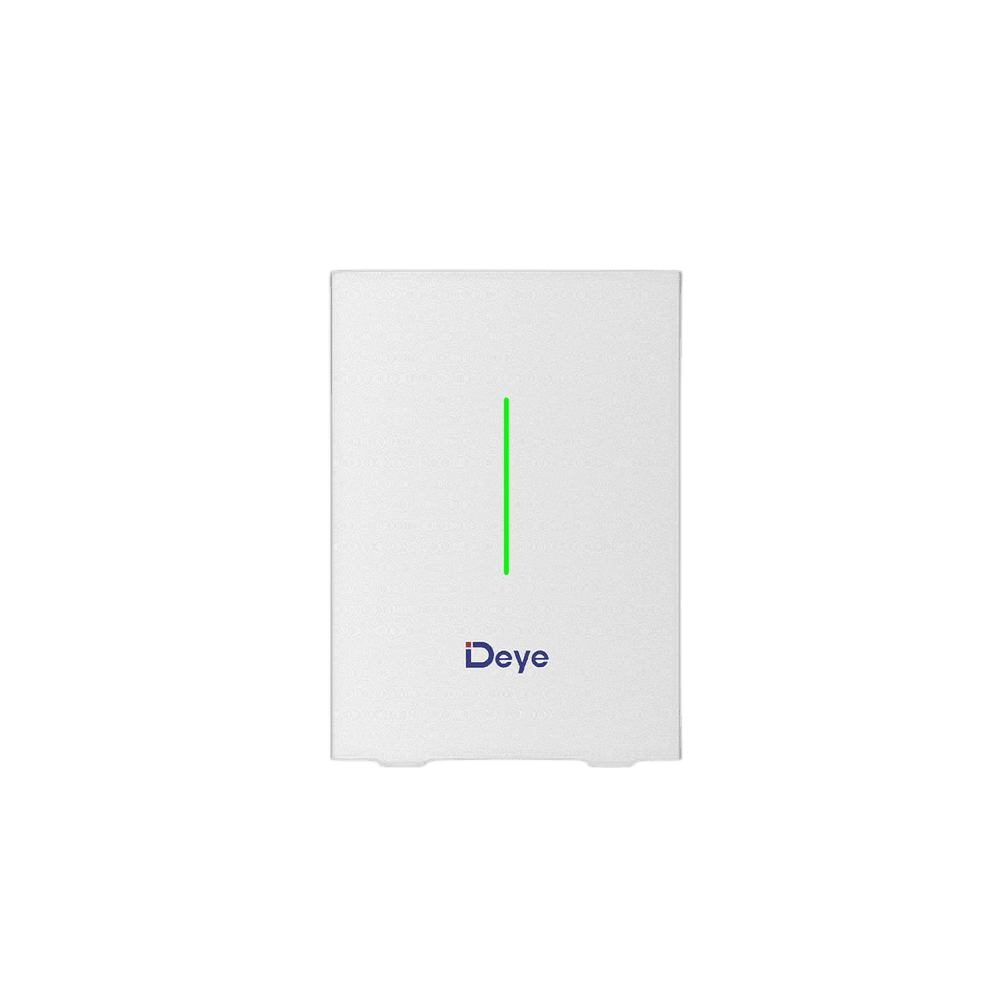

The Deye RW-F10.2-B is a scalable home battery storage system for North America. Featuring LiFePO₄ chemistry, 10.24kWh nominal energy, 200Ah capacity, 51.2V nominal voltage, 43.2-57.6V operating range, auto-networking modules (no DIP switch), max 32 packs in parallel (327kWh max), 1C charge/1.25C discharge capability, intelligent BMS, flat wall-mountable or floor-standing design, IP65 protection, and operation from -20°C to 55°C, it's the convenient and safe choice for residential energy storage.
