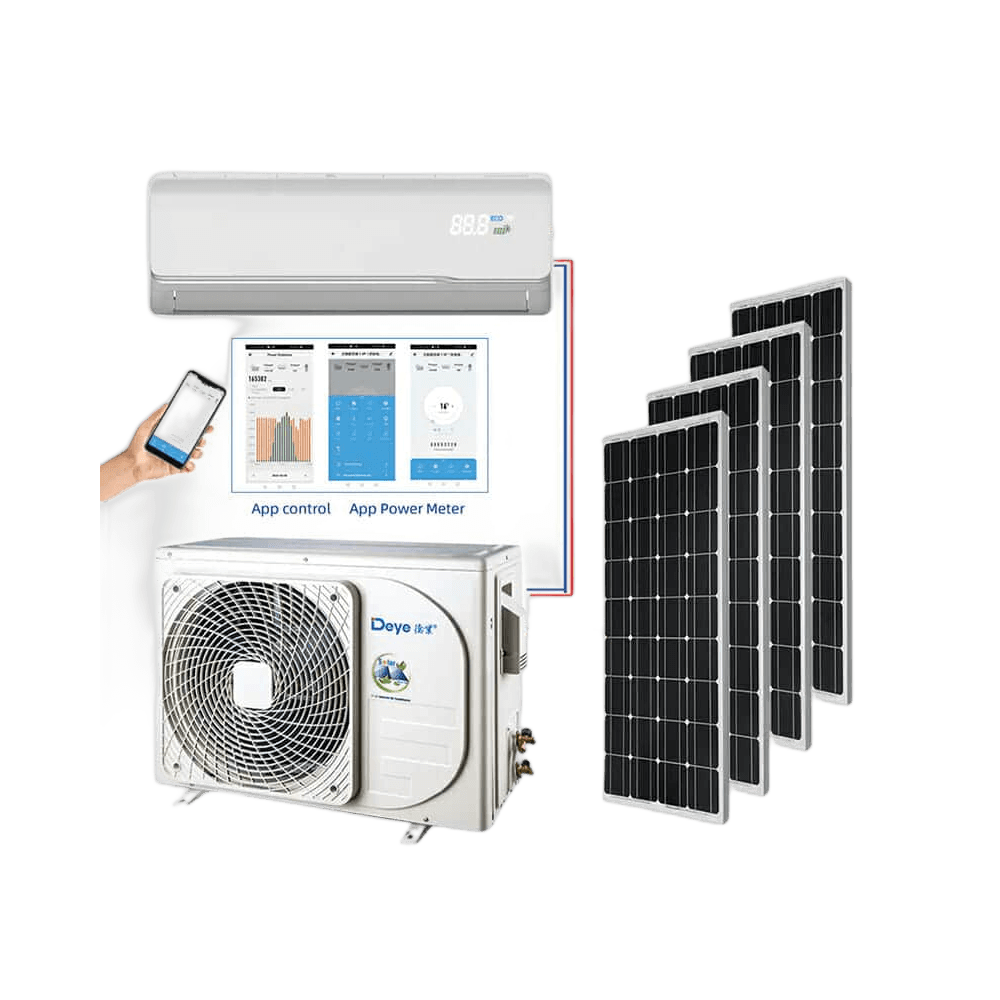

Deye DGA2-ACDCBLW-12K solar air conditioner

Solar Air ConditionersModel DGA2-ACDCBLW-12K

Deye 12,000 BTU Solar Air Conditioner DGA2-ACDCBLW-12K

AED 2,572incl. VAT

Out of stock

Capacity: 12K BTU

Out of stock

Ask on WhatsApp
Power Type
Hybrid AC/DC
Cooling Capacity
12,000 BTU
EER (T1)
3.75/12.75
Coefficient of Performance (COP)
3.50/11.95
Power Supply
1Ph 208-240V, 50/60Hz

Description

A 12,000 BTU PV-direct split sized for rooms of 12 to 20 m², fed by three to four 330 W modules at 80-380 V DC and quiet at under 42.5 dB indoors.

Deye 12,000 BTU Solar Air Conditioner DGA2-ACDCBLW-12K is best for

  • Bedrooms, home offices and small shops of 12 to 20 m²
  • Sites with three to four spare 330 W panels for a series string
  • Hot climates: T1 and T3 rated, working from -10 to 58 °C
  • Rooms where noise matters, at under 42.5 dB indoors
  • Year-round use, with 14,000 BTU of heating alongside the cooling

Deye 12,000 BTU Solar Air Conditioner DGA2-ACDCBLW-12K is not for

  • Rooms over 20 m², where the 17,300 BTU DGA1-ACDCBLW-18K starts
  • Sites with no PV array: the DC input is a panel string of 80-380 V, not a battery bank
  • Runs longer than 15 m of pipe or more than 8 m of level difference
  • Buildings with no single-phase 208-240 V supply to fall back on

Deye 12,000 BTU Solar Air Conditioner DGA2-ACDCBLW-12K full specifications

Key specifications

Cooling Capacity12000(3000-13300) BTU
AC Power Limiter0-600 W
Compressor BrandHighly
Compressor Configuration2xRotary Inverter
Compressor ModelWHP04200
Cooling Capacity (T1)3510(900-3900) W
Cooling Capacity (T3)9900 BTU
Cooling Capacity (T3)2910 W
All specifications (45)

Electrical(19)

Cooling Power Input (T1)940(190-1270) W
Cooling Power Input (T3)1050 W
DC Input Current<10 A
DC Power SupplyPV In Series
DC PV Voltage80-380 V
Dehumidification1.3 L/h
EER (T3)2.75/9.45
Electronic Expansion ValveYes
Heating Capacity14000 (3000-15300) BTU
Rated Heating Capacity4100(1000-4500) W
Heating Power Input1170(190-1700) W
Indoor Airflow540/485/435/350 m³/h
Indoor Fan MotorBLDC 15W
Outdoor Airflow2100 m³/h
Outdoor Fan MotorBLDC 40W
Outdoor Fan Speed880 rpm
Recommended PV Panels3-4
RefrigerantR410A
Solar Module Power330 W

Mechanical(13)

Connection Wire Length4 m
Container Loading Quantity200/85
Dimensions802 x 564 x 323 mm
Drain Pipe Size16 mm
Indoor Unit Dimensions840 x 205 x 295 mm
Indoor Unit Packing Dimensions920 x 290 x 360 mm
Indoor Unit Weight9/12.5 kg
Max. Level Difference8 m
Max. Pipe Length15 m
Outdoor Unit Packing Dimensions910 x 622 x 405 mm
Refrigerant Pipe (Gas/Liquid)3/8, 1/4 in
Supplied Pipe Length3 m
Weight33.5/37.5 kg

Environmental(5)

Climate TypeT3/T1
Indoor Noise Level<42.5 dB
Max. Design Pressure4.3/1.5 MPa
Operating Temperature-10 to 58 °C
Outdoor Noise Level<52 dB

Deye 12,000 BTU Solar Air Conditioner DGA2-ACDCBLW-12K features

  • Fed by three to four panels

    A series string of 330 W modules at 80-380 V DC drives the unit directly, drawing under 10 A. The 208-240 V single-phase line stays as backup.

  • 12,000 BTU for 12-20 m²

    Rated 3,510 W of cooling at T1 for 940 W drawn, an EER of 3.75/12.75. Output modulates between 3,000 and 13,300 BTU as the room load moves.

  • 14,000 BTU of heating too

    Reverse-cycle heating rated 4,100 W at a COP of 3.50/11.95, so the same unit covers cold nights instead of a second appliance.

  • Under 42.5 dB indoors

    A BLDC 15 W indoor fan with four speeds from 350 to 540 m³/h keeps the room side quiet; the outdoor unit stays below 52 dB.

  • AC limiter, 0 to 600 W

    The grid draw can be capped anywhere between 0 and 600 W, so the AC side never asks for more than the supply behind it can give.

About the Deye 12,000 BTU Solar Air Conditioner DGA2-ACDCBLW-12K

The DGA2-ACDCBLW-12K is the smallest of the three PV-direct air conditioners in the ACDCBLW line, sized for a bedroom, a home office or a back room of 12 to 20 m². Its DC side takes a string of three to four 330 W modules at 80-380 V and under 10 A, so the compressor works on panel power through the hours the sun is doing the damage. The single-phase 208-240 V, 50/60 Hz connection covers the rest, and an AC power limiter settable from 0 to 600 W decides how much of that supply the unit may take. Rated cooling is 12,000 BTU, or 3,510 W at T1 for 940 W of input, an EER of 3.75/12.75. Under T3 conditions it still returns 9,900 BTU. The same box heats to 14,000 BTU at a COP of 3.50/11.95 and strips 1.3 L/h of moisture from the air, on R410A with an electronic expansion valve and a Highly WHP04200 twin-rotary variable-speed compressor. We are an authorised Deye distributor and supply the DGA2-ACDCBLW-12K from our own stock, with technical support before and after the sale.

Specifications last updated 24 January 2026

Where to collect your order

Frequently Asked Questions

What room size is the DGA2-ACDCBLW-12K rated for?

Deye gives it an application area of 12 to 20 m², which covers a typical bedroom, a home office or a small shop floor. Beyond 20 m² the 17,300 BTU DGA1-ACDCBLW-18K takes over.

How many solar panels does the DGA2-ACDCBLW-12K need?

Three to four 330 W modules wired in series. The DC input works over 80-380 V at under 10 A, so the string voltage has to land inside that window.

Can it run when the sun is not on the array?

It also accepts a single-phase 208-240 V, 50/60 Hz supply, so mains covers the hours the panels cannot. How much it may draw from that side is set by the 0-600 W AC power limiter.

How does it hold up in Gulf summer heat?

It carries a T3 as well as a T1 climate rating and works from -10 to 58 °C. At T3 it returns 2,910 W, or 9,900 BTU, for 1,050 W of input, an EER of 2.75/9.45.

How far apart can the indoor and outdoor units be?

Up to 15 m of refrigerant pipe with a level difference of no more than 8 m. Three metres of pipe and 4 m of connection wire are supplied; the gas and liquid lines are 3/8 in and 1/4 in.
